Cambridge DACMAGIC 200M

Cambridge Audio’s flagship DacMagic 200M is the DAC equivalent of an all-inclusive holiday that not only offers flights, meals and accommodation but also throws in room upgrades, free excursions and unlimited ice cream for the kids. And while we may have forgotten what holidays feel like right now, the fact that this digital-to-analogue converter is a generous soul should please anyone in the market for a well-equipped DAC for their hi-fi or desktop system.

Features & connectivity

The DacMagic 200M wants to accommodate every music source and file you already own, or might conceivably think of owning. There are pairs of coaxial and optical inputs for covering CD players, games consoles and Blu-ray players, as well as a USB-type B socket (with a ground/lift switch) that welcomes laptops and PCs with open arms. For those who value easy and convenient wireless playback from a phone or tablet, aptX Bluetooth is also onboard.

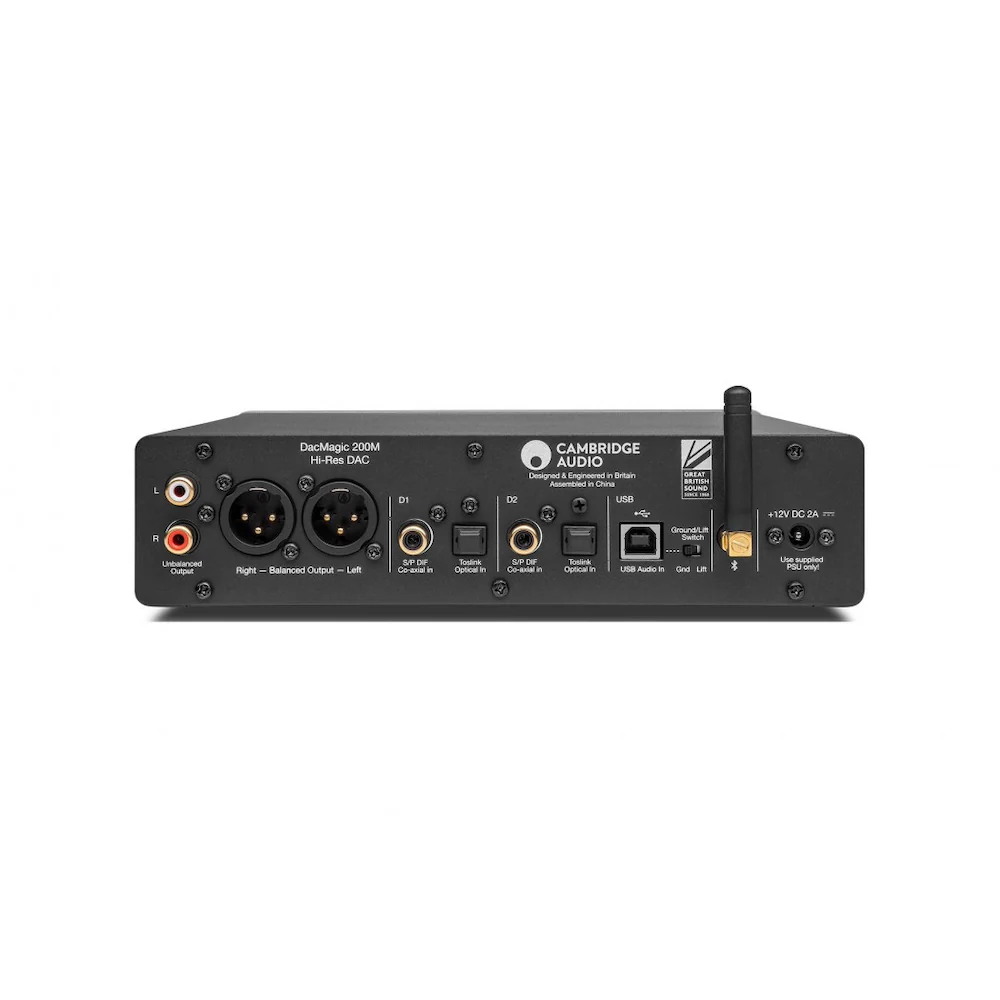

RCA and balanced XLR outputs on the rear panel allow the DacMagic 200M to be a middleman in a hi-fi system, while a front-panel 6.3mm output caters for listening via headphones. That’s driven by Class A/B amplification that, thanks to a reduction in output impedance, promises more power and less distortion than the one found in the previous DacMagic design.

High-resolution file support goes beyond what most people will need: the USB-type B goes up to 32-bit/768kHz and DSD512, above the bitrate of most commercially available music files, while the opticals and coaxials top out at 24-bit/96kHz and 24-bit/192kHz respectively. As off-the-shelf DAC chips become more sophisticated, hi-fi DACs increasingly sport such highbrow file compatibility.

But what makes the Cambridge stand out is its native support of MQA technology, meaning it can decode and play downloaded MQA hard files, in addition to hi-res Tidal Masters (which are MQA-encoded). That’s great news in particular for Tidal HiFi subscribers who have access to the increasing number of ‘Masters’ streams (many of which are 24-bit/96kHz) that populate the catalogue.

Build & design

The whole right-hand side of the Cambridge’s facade is dedicated to displaying the sampling rate of the audio signal being fed into it. Several LEDs each labelled with a sampling rate – ‘44.1kHz’, ‘48kHz’, ‘96kHz’ and ‘192kHz’, for example – light up to signify it. So if you’re playing a CD-quality file, the ‘44.1kHz’ LED will illuminate. Likewise, LEDs for MQA and DSD light up when those types of files or streams are detected.

It makes for a busy aesthetic, not least as they’re also joined by LED, buttons and text labels for DAC filters and source selection, as well as the usual power button, volume dial, headphone jack and company logos. Still, it’s smartly presented and gives the DAC a rather tactile element – great if you plan to have it near you on a desktop and manually make adjustments, though not so relevant if it’s placed far away (those text labels are small) or tucked away in a system rack, as the compact aluminium chassis lends itself to. There’s no remote control either.

The DAC architecture itself uses dual ESS Sabre DACs in a mono configuration. That means one DAC chip handles the right audio channel while the other handles the left, theoretically resulting in better channel separation.
