Marantz Cinema 40

Product highlights:

Power and processing:

• 9-channel amplifier
• 110 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
• Marantz’s Hyper Dynamic Amplifier Modules (HDAM) offer exquisite detail and dynamic range while reducing noise
• Dolby®, DTS®, and Auro-3D® surround sound decoding
  • Dolby Atmos® and DTS:X processing for use with in-ceiling or “height” speakers for more enveloping home theater sound
  • Dolby Atmos Height Virtualization and DTS Virtual:X create three-dimensional effects without height speakers
• IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
• Audyssey speaker calibration and system optimization includes:
  • MultEQ XT32 auto setup and room calibration delivers balanced, dynamic sound with enhanced surround performance
  • Dynamic Volume anticipates loud sounds to keep volume levels even
  • Dynamic EQ improves dialogue, bass response, and surround channel levels at lower volumes
  • Sub EQ HT provides individual calibration for four subwoofers, for even bass response throughout the room
  • Low Frequency Containment reduces the amount of bass that bleeds into other rooms
  • Audyssey MultEQ Editor app for further audio customization (paid app; not included)
• optional Dirac Live room calibration and bass management
  • requires purchase of separate license from Dirac
  • requires separate PC or Mac and a third-party USB microphone (all sold separately)

Digital and streaming music options:

• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
• HEOS Built-in technology wirelessly connects compatible HEOS components for whole home audio
  • includes support for Pandora®, TIDAL, SiriusXM, and Spotify® (subscription required for some services)
  • free HEOS app offers easy Wi-Fi control, settings adjustments, and music selection and playback
  • works with Amazon Alexa and Google Assistant voice controllers
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
  • supports multi-room audio with compatible wireless speakers
• built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
• Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
  • play audio through Bluetooth headphones only, or through Bluetooth headphones and connected speakers simultaneously
• plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 5.6 MHz)
• works as a Roon player (requires subscription and Roon Core running on your network)
  • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware

Multi-room audio/video:

• dual-room/dual-source output
  • powered stereo outputs for second room allows playback in both rooms at once
  • All Zone Stereo mode ensures that both zones stay in sync when playing the same source
  • All Zone TV Audio lets you play surround sound in your main room and downmixed stereo in your 2nd room
  • HDMI dual-zone switching for watching video content from different sources in two zones simultaneously
  • Zone 2 compatible audio sources: HDMI audio, optical/coaxial digital inputs, analog audio inputs, AM/FM tuner, USB, Bluetooth, and HEOS music apps
  • cannot select different USB/Bluetooth/network sources for each zone

HDMI features:

• HDMI 2.1 audio/video switching: 6 in, 3 out
  • all inputs and 2 outputs support 8K/60Hz and 4K/120Hz video
  • all inputs and outputs support 4K/60Hz video
  • HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
  • HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
  • supports HDR10, HDR10+, Dolby Vision®, HLG, and Dynamic HDR
• upscales 1080p video signals to Ultra HD (up to 8K)
• gaming-optimized video processing technologies for a smooth, lag-free gaming experience
  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing
• supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

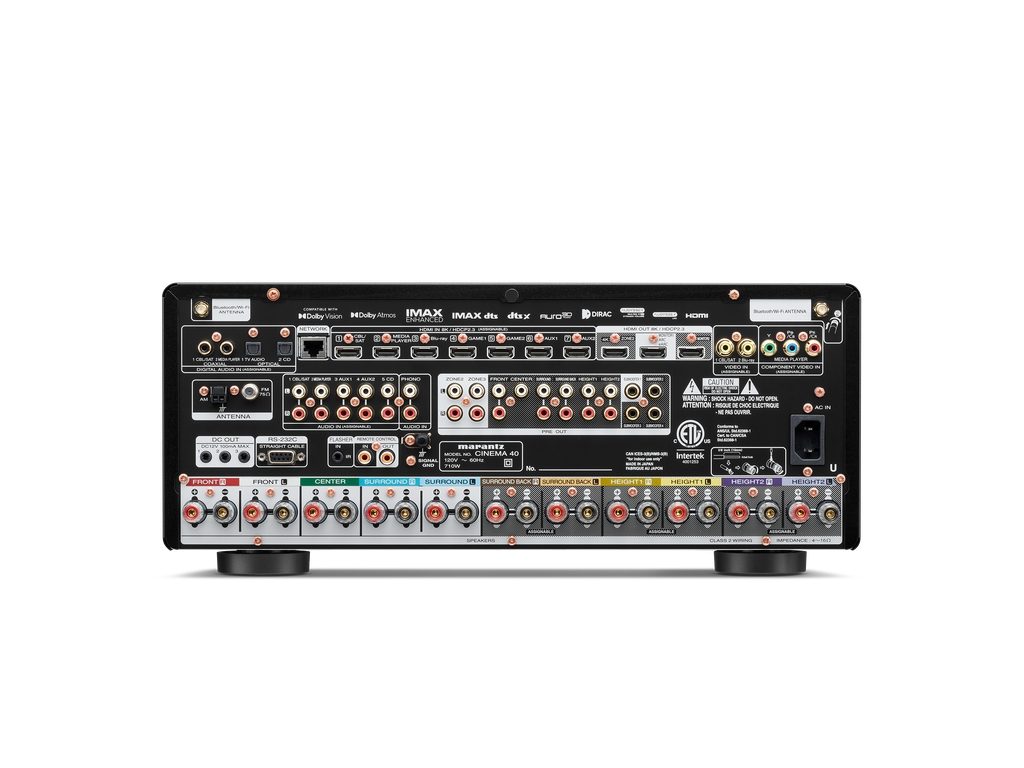

Other connections:

• digital audio inputs: 2 Toslink optical, 2 coaxial
• 5 analog stereo RCA audio inputs
• MM (moving magnet) phono input for connecting a turntable
• 11.4-channel preamp outputs
  • four discrete line-level subwoofer outputs for more precise multi-subwoofer setups
• front-panel USB port for audio playback from USB flash drives
• Ethernet port for network connection
• outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height1 L/R, Height2 L/R)
  • receiver can power a maximum of 9 channels at once
• RS-232C and IR (infrared) remote connections for use with optional third-party controllers
• 12-volt trigger output
• full-sized headphone jack
• removable power cord
